Model Number

KL-GT3

Brand Name

Kanglong

origin

China

Small Orders

Accepted

Key Specifications/ Special Features:

Main Features:

1. Built in CTCSS and CDCSS

2. 5W Output Power

3. Monitor Function

4. Power Saving Function

5. Low Cost with Compact Size

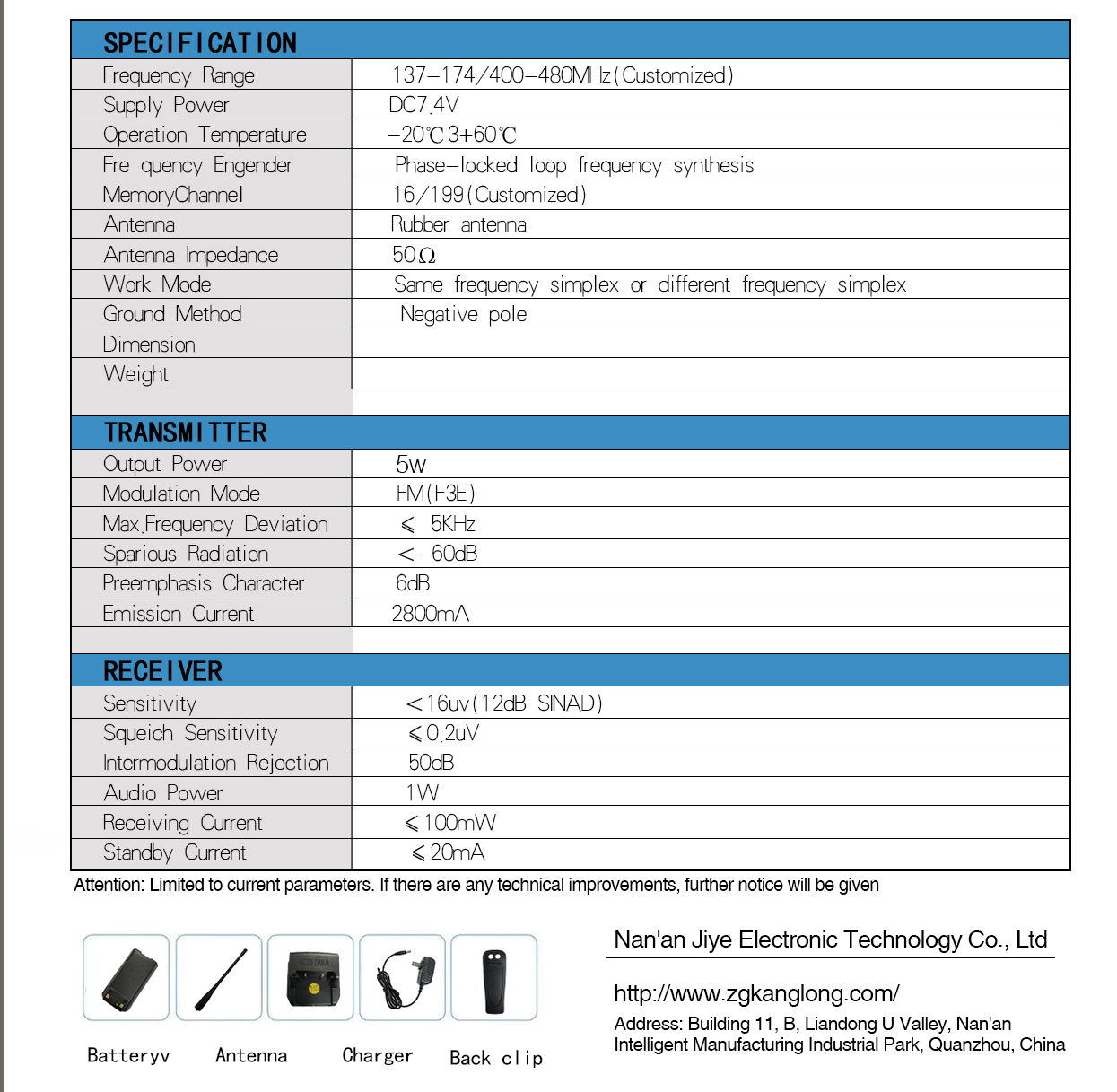

Specifications
GENERAL

Modelv

KL-GT3

Frequency Range

(Choose one from two)

UHF: 400~470MHZ

VHF: 137~174MHZ

Working Temperature

-25℃ ～ +55℃

Operating Voltage

DC 7.4V

Operating Mode

Simplex/Semi-duplex

Dimension

114mm*59mm*34mm(Exclude  Antenna)

Weight

190g(Include Li-ion Battery)

Antenna Impedance

50Ω

TRANSMITTER

RECEIVER

Frequency Stability

±2.5PPM

Reference Sensitivity

< 0.2μV

Output Power

≤ 5W

Audio Distortion

≤ 3%

Modulation Limited

≤ 5KHZ / 2.5KHZ

Audio Response

+2dB ～ -10dB

Audio Distortion

≤ 3%

Co-Channel Rejection

≥ -8dB

Modulation Characteristics

+3dB ～ -3dB

Adjacent Channel Selectivity

≥ 60dB

Adjacent Channel Power

≥ 65dB

Intermodulation Rejection

≥ 65dB

Spurious Radiation

≤ 7.5μW

Spurious Response

≥ 70dB

Occupied Bandwidth

≤ 16KHZ

Blocking Characteristics

≥ 80dB
